1.6T OSFP224/OSFP112 Transceiver
| Part Number | Model No. | Picture | Data Rate(Gbps) | Wavelength | Media Type | Reach | TX Power(dBm) | RX Sens.(dBm) | Temp.(℃) | Note | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|

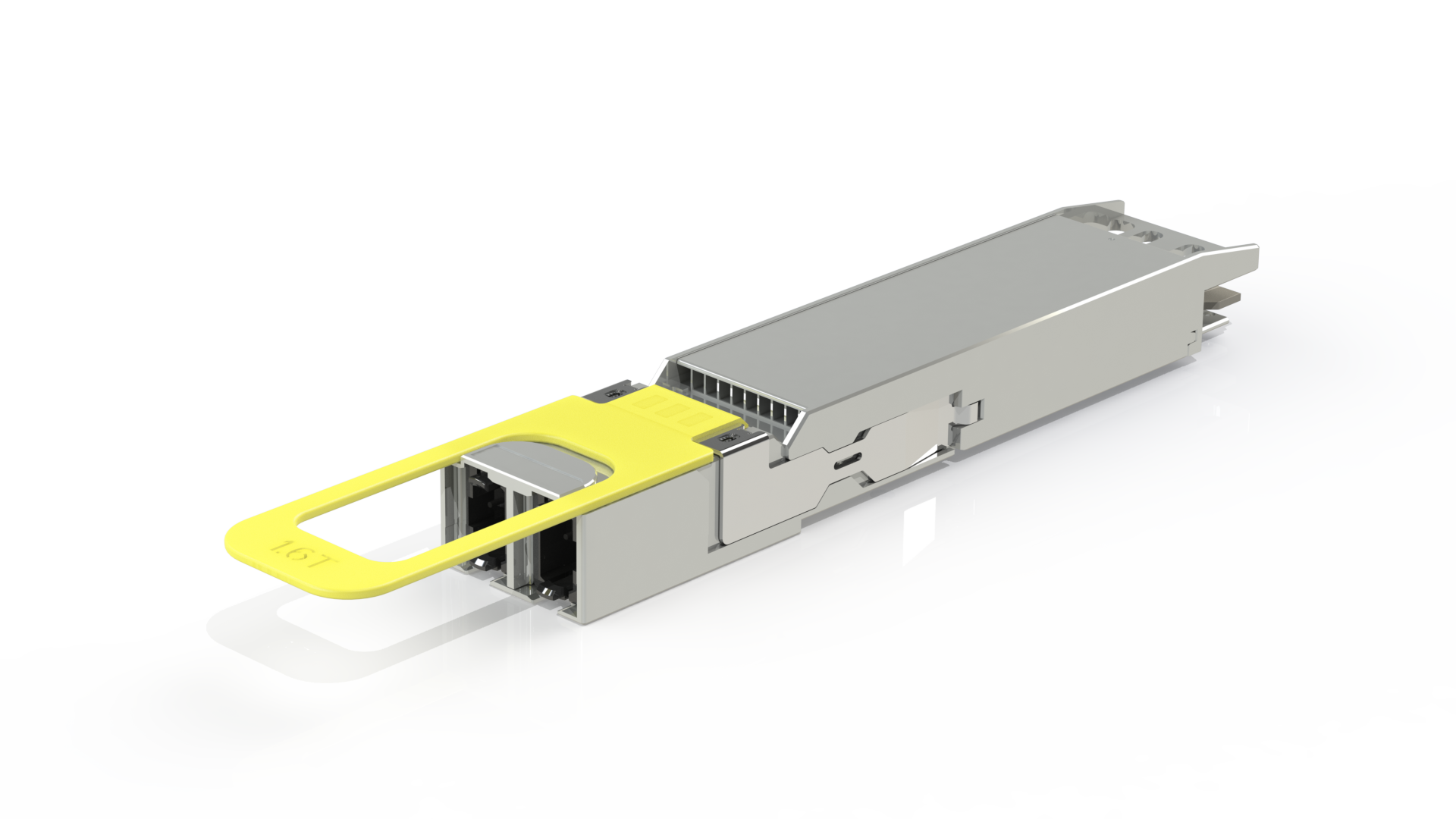

| OPNR-SX5-13-CBN | 1.6T OSFP224 DR8 |  | 1.6T | 1310nm | 2XMTP/MPO-12 APC | 500 m | -3.3~+4 | -4.3 | 0~70 | Compatible with Nvidia MMS4A00 | |
| OPNR-S02-13-CB2 | 1.6T OSFP224 2xFR4 |  | 1.6T | 1310nm | Dual Duplex LC | 2km | -2.2~+4.9 | -4.6 | 0~70 | ||
| OPOR-S02-13-CW2 | 1.6T OSFP112 2xFR4 |  | 1.6T | 1310nm | Dual Duplex LC | 2km | -2.2~+4.9 | -4.6 | 0~70 |
